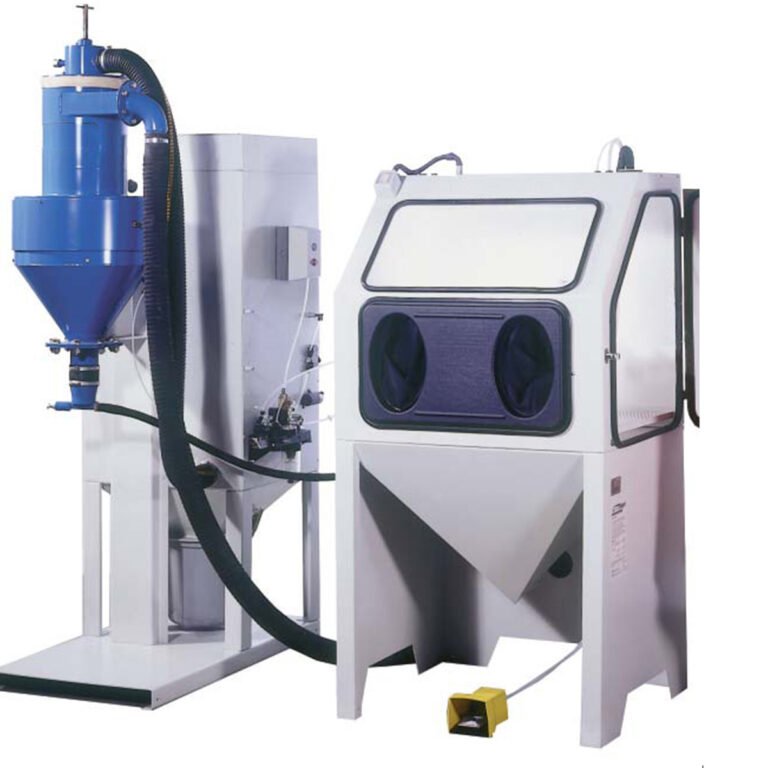

SUction blast cabinet
A professional, hand blast cabin for roughening, cleaning, rust removal, matting, deburring and polishing of workpieces. An installation that is suitable for various types of blasting media (corundum, glass beads, ceramic pearls, steel grit, zirconium sand, plastic blasting media, etc.).
The installation works with a vacuum injection blasting system. For this, the blasting gun is equipped with two hoses, one for the compressed air and the other for the blasting medium. Using the created vacuum, the abrasive is sucked in from the funnel and sprayed onto the workpiece via the nozzle. Then the sprayed medium falls through the work grid and enters the abrasive funnel again. As dust separation, a continuously cleaning cartridge filter is used which extracts and separates the dust and other contaminants from the blasting medium. The separated dust is collected in the dust collection bin. The abrasive falls back into the abrasive funnel for reuse.

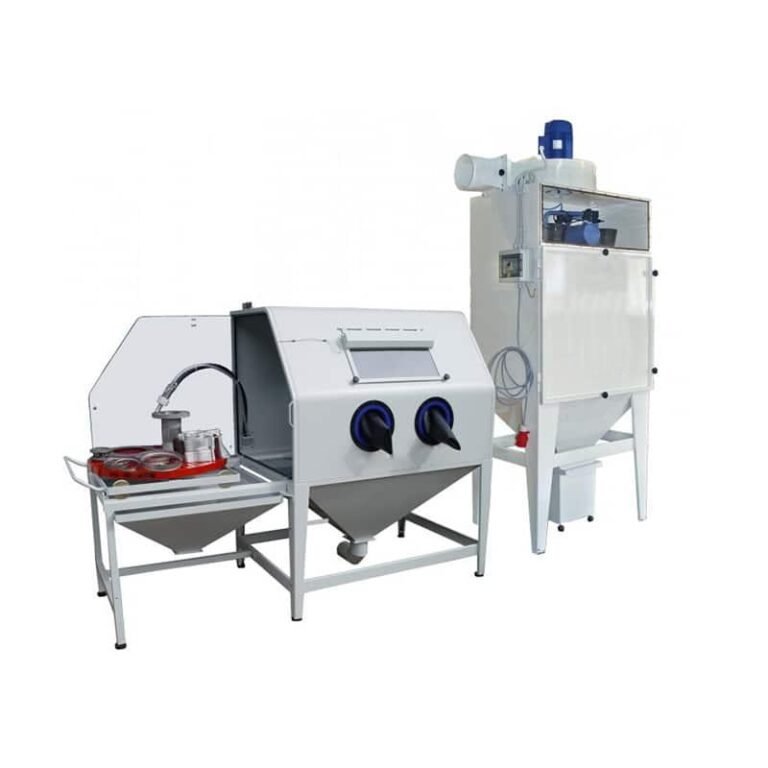

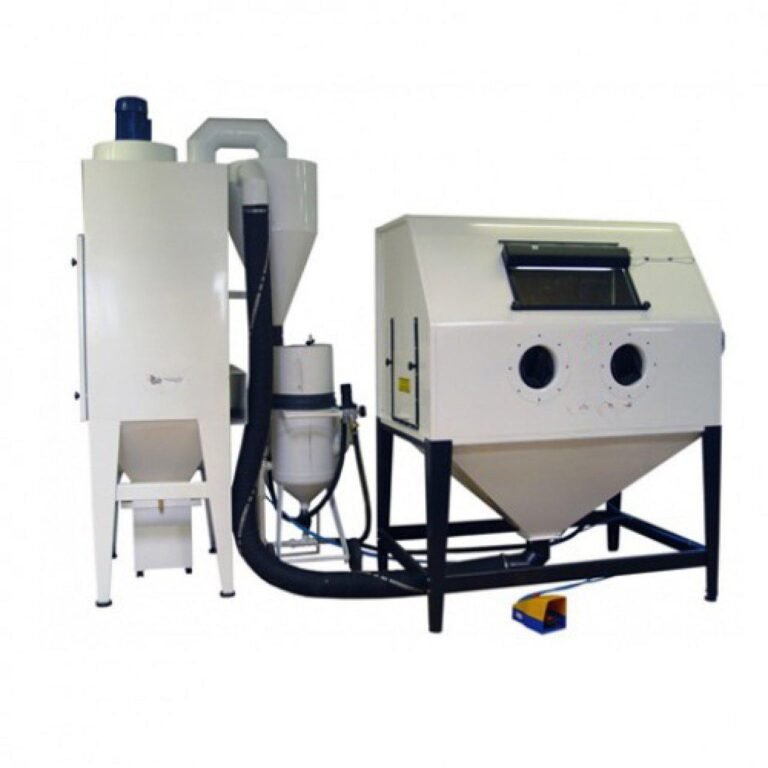

SUCTION BLASTING CABINET
Disa suction-type blasting cabinet is specially designed for product sandblasting applications. When used in conjunction with high-quality blasting abrasives, it can meet the sandblasting requirements in high-production-capacity manufacturing scenarios. This product is equipped with advanced functional features that can fully ensure the integrity of the abrasives; its power recovery system can be independently placed at any location, guaranteeing the efficient execution of sandblasting operations.
Typical Applications
Rust and thermal oxide layer removal
Paint stripping
Surface texturing and roughening treatment
Surface pre-treatment before painting, pressure welding and electroplating
Removal of surface corrosion layers
Shot peening strengthening
Regular component cleaning
Product Features
Low noise level
Robust structure
High ventilation rate and good visibility
Equipped with a large observation window
The sandblasting generator and dust collector can be flexibly placed at any location
The pressure regulator is installed at the operator’s working position for easy operation
Adopts a reverse pulse dust collector with side-mounted filter elements, enabling convenient cleaning and replacement
Oval-shaped glove ports, suitable for operators with different hand sizes
Anti-static gloves
Built-in purge spray gun
Adjustable abrasive valve
Interlocked cabinet door design
Equipped with an advanced cyclone separator, enabling efficient and adjustable media separation
Vibrating screen mesh can remove impurity particles with excessive sizes
When non-metallic media is used, iron impurities can be removed by the magnetic separator
The left-mounted built-in high-efficiency dust collector with reverse pulse function achieves minimal dust emission and reduces noise levels
Technical data
